Transverter Selector

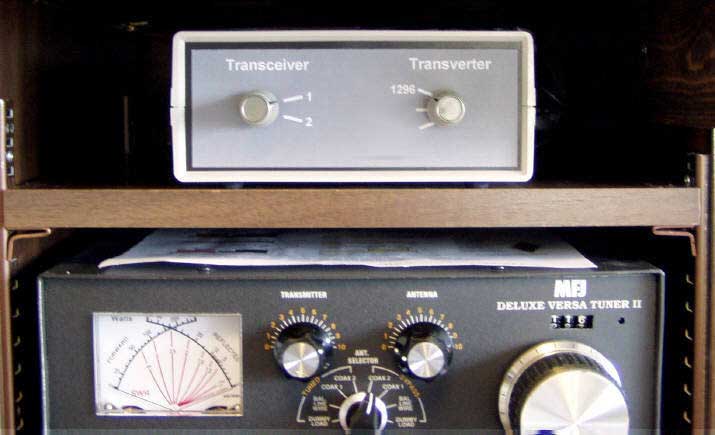

This switch box was built to allow the use of 2 different radios to be used with 3 different transverters.

Click any thumbnail for an enlarged picture.

front_panel.jpg (49597 bytes)rear_panel.jpg (60047 bytes)inside.jpg (114397 bytes)lettering.jpg (13075 bytes)xsw.jpg (51314 bytes)

The transceiver switch (s1) selects the radio, and switches RF, key line, and ALC feedback. The two radios it was designed for are the Yaesu FT-817 and Flex 6500.

The transverter switch (s2) selects which transverter the selected radio is passed to; and the RF and key lines are the connections that are switched. The pictures above were taken of an earlier model; the schematic is of the box currently in use.

In my station, 10 mw is the power level required for the transverters, and all of them have common tx/rx I.F. ports. One of the radio inputs has a 14db attenuator in line, making it suitable for 1w drive level; the other radio input is unattenuated, and that one is used with the Flex SDR.

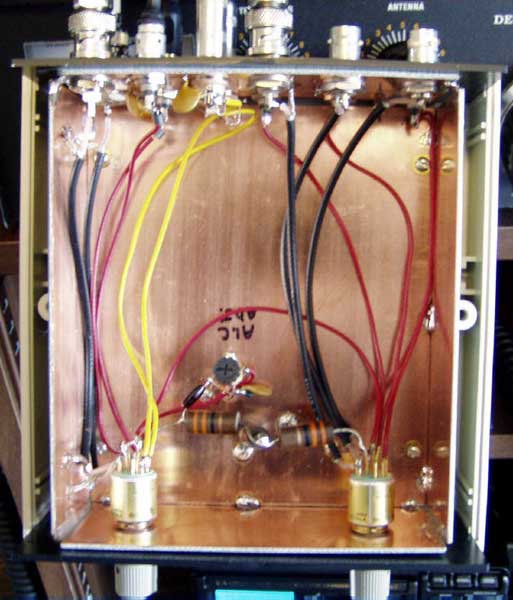

I built this into a plastic enclosure, and used single-sided PC board as a liner for easy soldering, good grounding and proper shielding. Coax lines are RG-174 (not much is critical at 28 Mhz, my usual IF frequency for transverters). The front panel lettering was made with a full sheet inkjet label, and cut to fit the front and rear panels. The PowerPoint file used to create it is included here as well.
